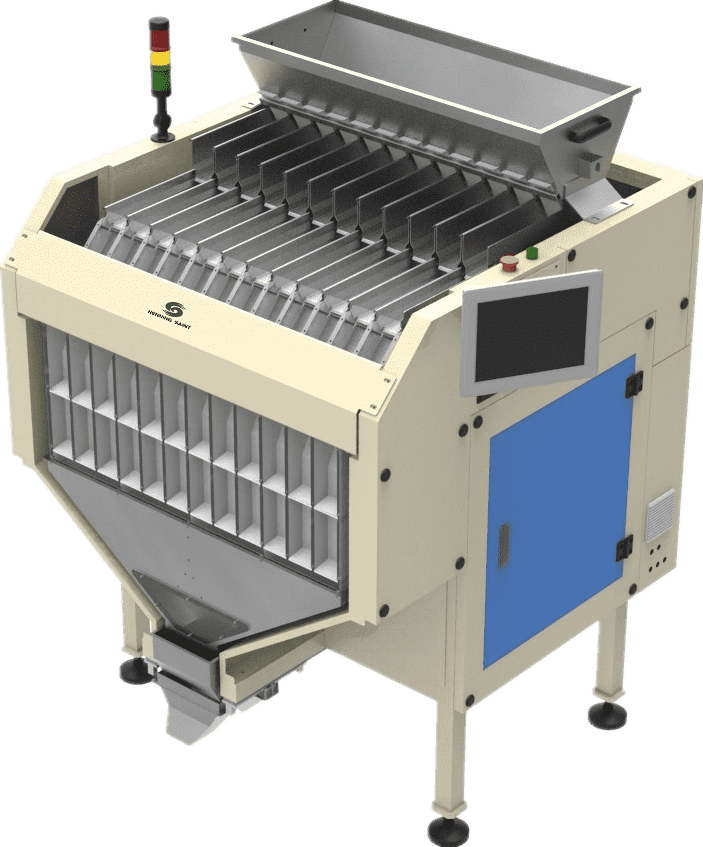

Snacks Vision Counter

HS-VM12 is a multi-channel combination counter for single packages of 10-100 pieces, which can be used with different automatic packaging machines. It can effectively count many types of candy, bagged snacks, pharmaceuticals and blood collection needles with high efficient.
  • Facebook
  • Twitter
  • Youtube
  • henningsaint
  • Product details

    Working principle of vision counters

    HS-VM12 snacks vision counters with high-speed industrial line array camera, when the material falls through the camera recognition area, the line array camera through high-speed scanning, accurately capture the material falling attitude, shape and other information, and upload to the processing center, through the processing center powerful algorithm real-time analysis and processing, accurate calculation of the number of materials to achieve real-time counting function.

    Advantage Features

    1.High accuracy of counting

      ●High speed array camera can realize continuous uninterrupted scanning imaging, accurate identification count.

      ●Advanced large capacity FPGA processing and control system, response time at 1 nanosecond.

      ●Optimized algorithm software effectively identifies overlapping objects and micro impurity.

      ●intelligent feeding system to ensure the subcontracting accuracy.

      ●Insensitive to dust.

    2.High efficiency of counting

      ●Using large track instead of narrow track to scan falling objects greatly improves the counting efficiency.

      ●Increase cache storage room to improve efficiency.

    3.Patented self-learning technology can achieve to count different objects easily

    Through the learning mode,the data of various falling posture of the materials are automatically obtained,and the accuracy of the parameters is checked by the verification mode. If there is an error, the parameters can be fine-adjusted manually.

    4.One button clearing function

    It has the function of one key cleaning the tailings without worrying about material mixing, which improves the speed of replacing materials.

    5.Connectable to ERP system

    The ERP information cascade, label information and local log can be sent to the information system.

    6.All packaging number has no negative error,exceed the package can enter the return system

    Eliminate the occurrence of customer complaints caused by less material reasons, beyond the value set,the machine can automatically identify and fall to finished conveyor beltthe belt reverses to discharge the excess bag.

    7.Intelligent detection alarm

    Foreign bodies, lack of material, abnormal packaging machine will issue an alarm prompt.

    Technical Parameters



              Model No.            HS-VM12
             Power(kW)             2.5KW
             Voltage(V)             220(50Hz)
      Dimension(L*W*H,mm)            1264×1198×1146
             Weight(kg)             450
      Air Pressure(MPa)         0.6-0.8
     Material Dimension         Ø3-30mm
      Counting efficiency    Ø10mm,50pcs, 25 bags/min
    Counting Accuracy(%)   >99.9%,no negative deviation

    Scope Of Application

    iViUdk21guyifqzZU_!!0-item_pic.jpg_q90.jpg&refer=http___img.defanli_副本.png   src=http___ci.xiaohongshu.com_ea47b61b-4b0d-48b8-a387-47cc9ff5eb1d_imageView2_2_w_1080_format_jpg&refer=http___ci.xiaohongshu_副本.png


    Package Demo

    src=http___pic2.womai.com_upload_601_603_606_64306_280375_82817_219361_581246_581246_3_pic500_2268.jpg&refer=http___pic2.womai.webp_副本.png                     图片2_副本.png
